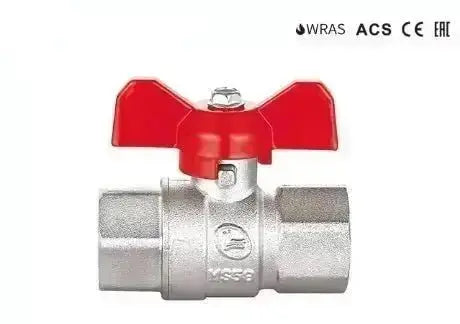

WRAS Approved Brass Ball Valve with Red T Handle
Delivery Time
General Delivery Time: StockFemale X Female Long Thread 25 Bar Brass Ball Valve With T Handle
Working Pressure 25bar (362.5 psi), Working Temperature from -10 ℃ to +120 ℃ (from 14℉ to 248℉) Thread ISO228 (equivalent to DIN 259 and BS2779) Opening/closing Test 10,000 times With a working pressure of 25bar (362.5 psi) and a working temperature range from -10 ℃ to +120 ℃ (from 14℉ to 248℉), this WRAS Approved Brass Ball Valve with Red T Handle can withstand heavy use and extreme temperatures without sacrificing quality. Plus, with a thread ISO228, equivalent to DIN 259 and BS2779, you can trust that this valve will provide a secure and reliable connection. Tested for opening and closing durability 10,000 times, this valve is built to last.
This brass ball valve features a high-density forging, ensuring a smooth surface without blisters or air holes, and preventing any potential leakage. Expertly crafted with special high precision CNC machines, the valve body and bonnet are made to last. The valve ball is designed to be smooth and wear-resistant, ensuring optimal sealing performance. The valve stem, made of hot rolled brass, boasts high tensile strength and good toughness, allowing for long-term use without deformation or fracture. The ball seat is made of pure PTFE, providing high elasticity and wear resistance while preventing aging. The handle is made of aluminum alloy and features a professional surface painting, offering wear-resistance and anti-corrosion properties. Its small appearance allows for flexible open and close movements. The O-ring, made of NBR & FKM and imported raw materials, has a small friction coefficient and long service life, providing optimal leak prevention. The stainless steel locknut is internally designed to prevent loosening and is built to withstand long
- Technical Specification
- Full flow Female x Female brass ball valves with T handle.
- The thread, color of handle, materials, etc. can be customized.
Dimension mm |
1/4" | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" |
A |
45 | 45.8 | 59.4 | 67 | 77 | 93 |
B | 23 | 23 | 29.5 | 35.5 | 42.7 | 53 |
C | 35 | 36 | 38.8 | 44 | 52.5 | 59 |
D | 54 | 54 | 54 | 60 | 67 | 67 |
E | 9 | 10 | 14.8 | 19 | 24 | 30.2 |
PN | 25 | 25 | 25 | 25 | 25 | 25 |
Materials of Parts
No. | Part | Materials |
1 | Body | Brass |
2 |
Bonnet |
Brass |
3 | Ball | Brass |
4 | Seal | PTFE |
5 | Stem | Brass |
6 | O ring | NBR |
7 | O ring | Fluorubber |
8 | Handle | Aluminium Alloy |
9 | Nut | Stainless Steel |
Reminding: Ball valves in red handle can be only used in water services, heating and air conditioning plants, and compression air system. They are not allowed to be used in gas system.
