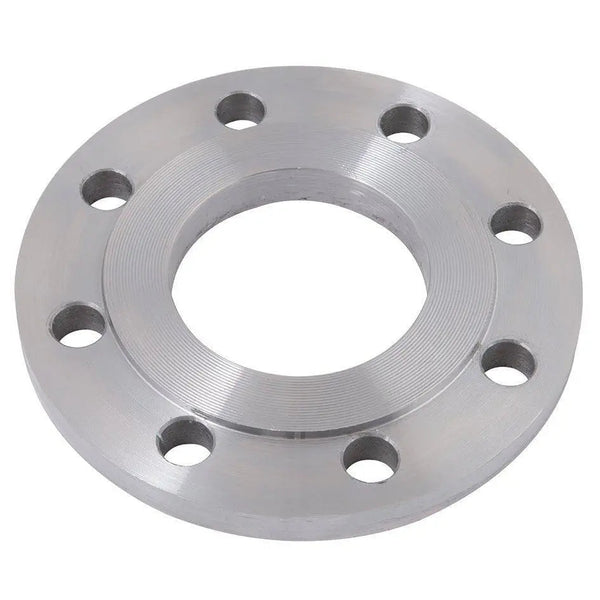

Carbon Steel PN16 Flanges BS EN 1092-1 (BS4504)

Understanding PN16 Flanges BS EN 1092-1 (BS4504)

What are PN16 Flanges?

PN16 Flanges BS EN 1092-1 (BS4504) are a widely used type of flange in various piping systems. They are designed to handle pressure ratings of up to 16 bar, providing a reliable option for water, gas, and oil applications. PN16 denotes the pressure nominal, which helps engineers and contractors select the right fittings for specific projects. Because of their high strength and durability, these flanges are essential in ensuring system integrity and longevity.

Standards and Specifications

The BS EN 1092-1 (BS4504) standard outlines key specifications for PN16 flanges. This includes material requirements, dimensions, and tolerances, which must be followed to maintain safety and compatibility. Flanges produced under this standard must adhere to rigorous testing to ensure they are leak-proof and capable of withstanding significant pressure. Therefore, using PN16 flanges that meet these standards is crucial for any project involving fluid transport.

Applications of PN16 Flanges

PN16 Flanges are utilized in various industries, including water treatment, chemical processing, and oil and gas. Because they can handle high pressure, they are ideal for systems that require dependable connections. For instance, in water treatment plants, these flanges are employed to connect pipes, valves, and other equipment securely. Their versatility ensures that they can be used in both residential and commercial applications, making them a popular choice among engineers and contractors alike.

Flange tables can be found here to check your dimensions
