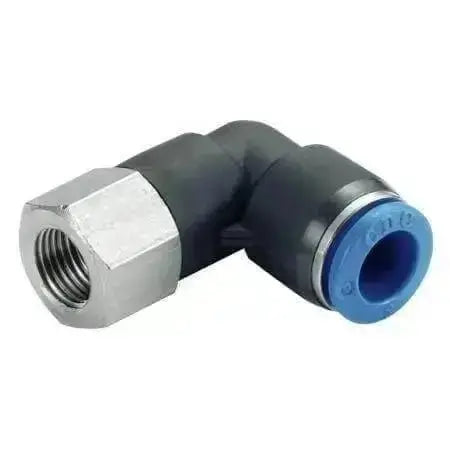

Pushin Female Elbow Connector

Description

These female elbow connectors, sometimes called female stud elbow, have one female thread x pushin at 90°. The body is made from brass, all o-rings are NBR, brass collar, POM release sleeve, stainless steel lock claw. The BSPT female fittings comes coated with Teflon and the BSPP have an O-ring. These are design for use with compressed air and are not suitable for any other gases or liquids. Designed for use with nylon tube or polyurethane tubing. Working Pressure 150 psi (10.2bar), also suitable for vacuum -29.5 in Hg (-750 mm Hg/Torr), working temperature is 0°C to +60°C
