PCL Instant-Air Series Quick Connect Couplings Brass

Description

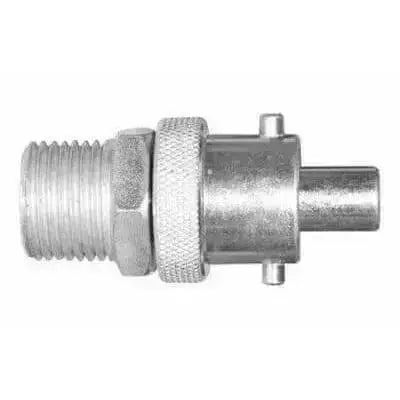

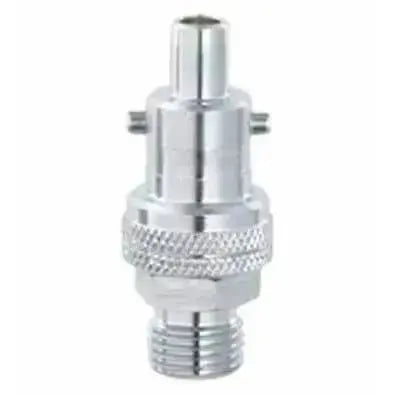

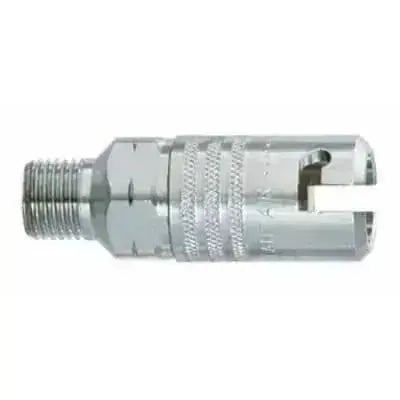

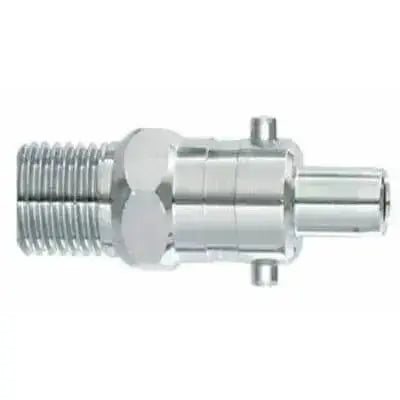

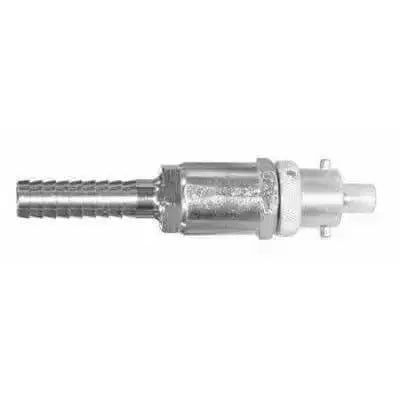

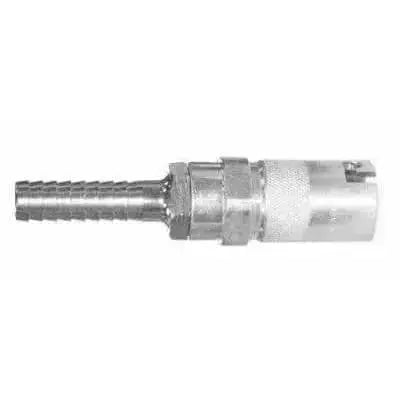

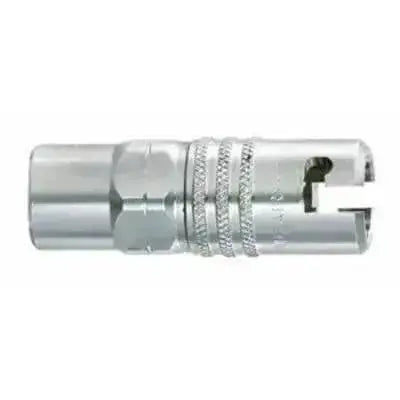

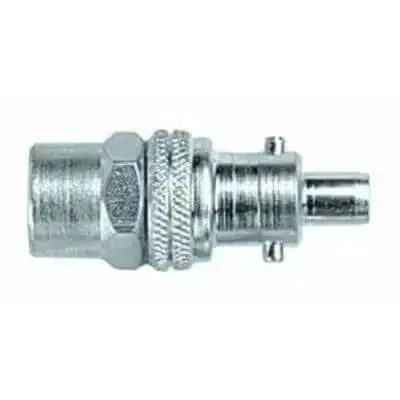

This is a PCL instant-air series pneumatic quick release coupling, zinc plated brass. These couplings are designed to be compact and lightweight and to prevent accidental disconnection This range has a maximum working pressure of 17 bar with a flow capacity of 1530 l/min.  This coupling is valved which is closed when disconnected.

Specifications

• Nominal flow diameter 5.6mm (7/32")
• Flow Capacity is 1530 l/min (54 CFM) measured at 6 bar (87 psi) with a 0.5 bar (7 psi) pressure drop
• Max working pressure 17 bar (250 psi)
• Temperature range -40°C to +100°C (-40°F to +212°F)
