Cejn 430 eSafe Coupling

Description

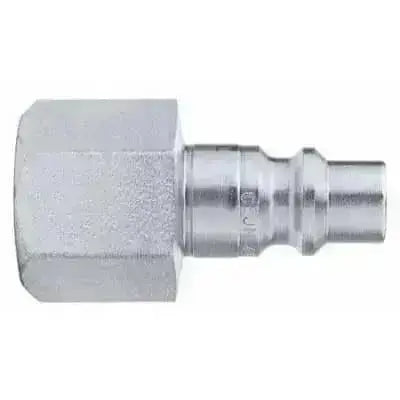

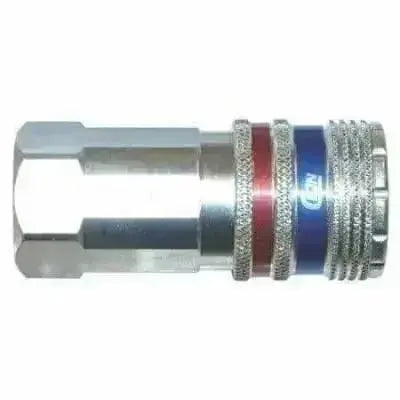

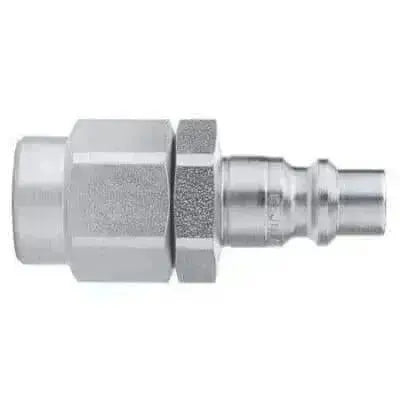

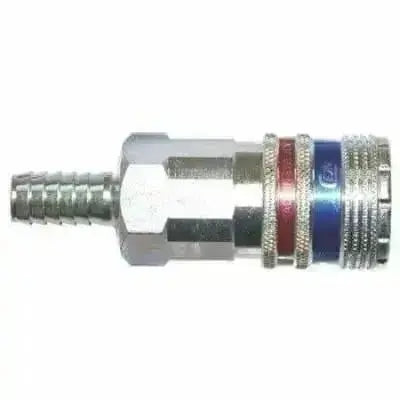

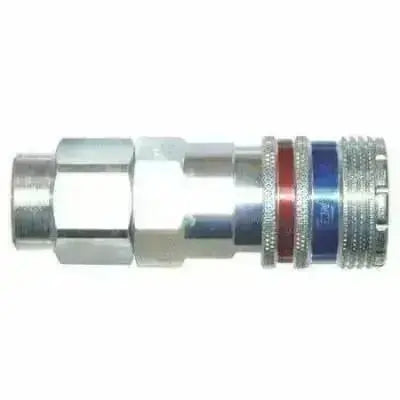

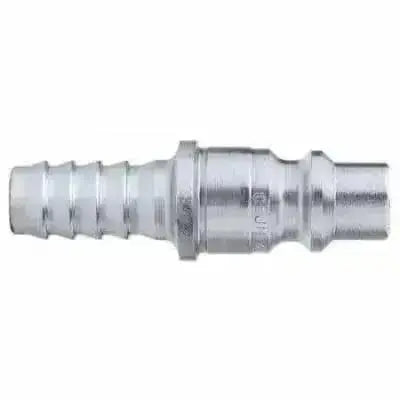

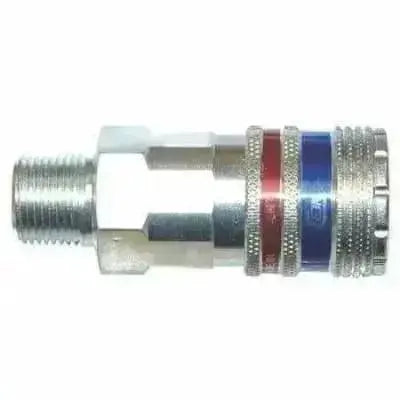

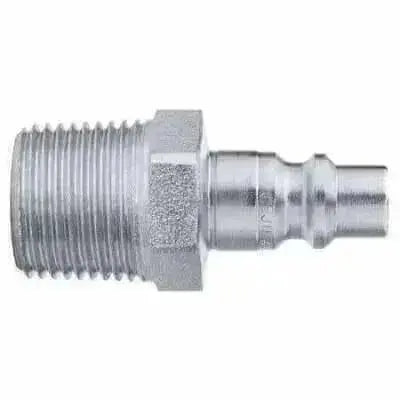

This is a Cejn Series 430 pneumatic quick release coupling, couplings are manufactured from nickel plated brass and the Plugs are manufactured from hardened zinc plated steel. This range has a maximum working pressure of 16 bar with a flow capacity of 2500 l/min.  This coupling is valved which is closed when disconnected.

These fittings are designed to be lightweight, with a high flow capacity, small external dimensions and are also suitable for vacuum.  The design ensures a fast, easy, one hand operation and extremely efficient.

Specifications

• Nominal flow diameter is 8.2mm (5/16")
• Flow Capacity is 2500 l/min (88.3 CFM) measured at 6 bar (87 psi) with a 0.5 bar (7 psi) pressure drop
• Max working pressure 16 bar (232 psi)
• Temperature range -20°C to +100°C (-4°F to +212°F)
