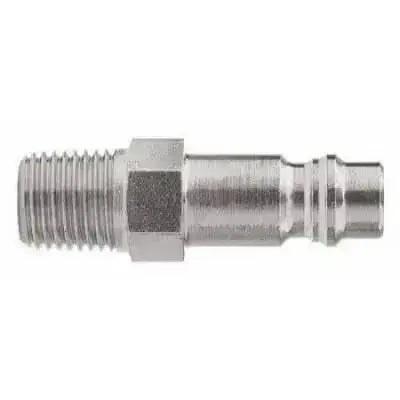

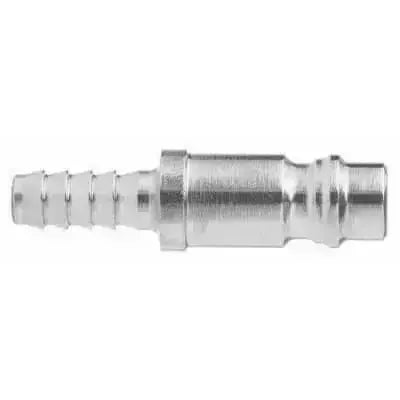

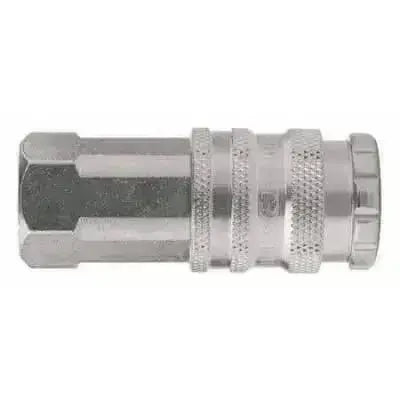

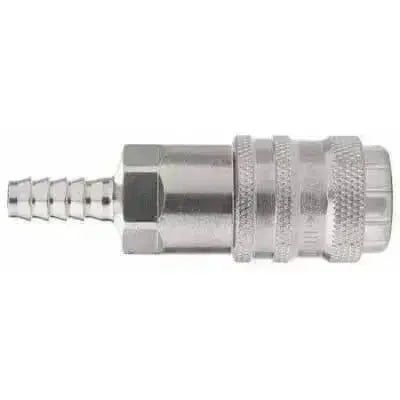

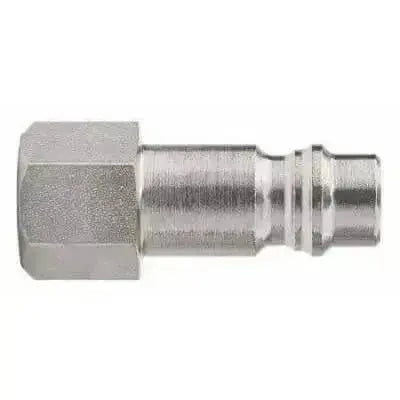

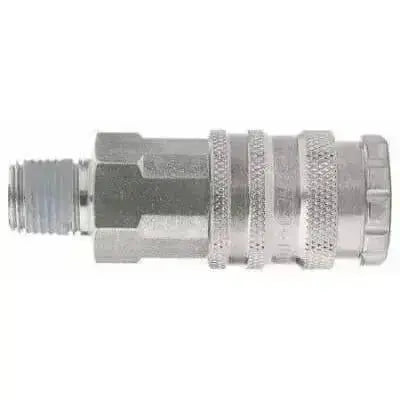

Cejn 341 Breathing Air Coupling

Description

This is a Cejn Series 341 breathing air quick release coupling, couplings and Plugs are manufactured from nickel plated brass. This range has a maximum working pressure of 35 bar with a flow capacity of 1950 l/min.  This coupling is valved which is closed when disconnected. These couplings are designed to prevent unintention disconnection, one hand to connect, and two hand to disconnect.

These fittings are designed to have an extremely high flow rate and are perfect for use in damp/wet and corrosive environments.

Specifications

• Nominal flow diameter is 7.4mm (9/32")
• Flow Capacity is 1950 l/min (68.8 CFM) measured at 6 bar (87 psi) with a 0.5 bar (7 psi) pressure drop
• Max working pressure 35 bar (507 psi)
• Temperature range -30°C to +100°C (-22°F to +212°F)
