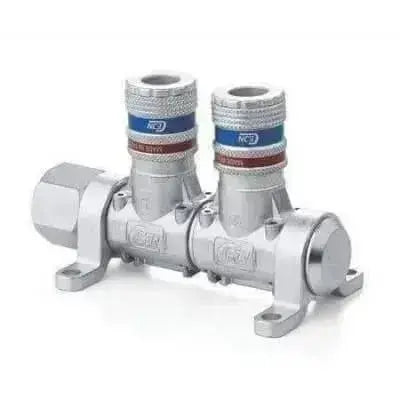

Cejn 320 Series E-Safe Mulit Link System

Description

This is a Cejn Series 320 E-Safe Mutli Link System, couplings are manufactured from nickel plated brass . This range has a maximum working pressure of 16 bar.  The couplings are valved which is closed when disconnected. Conection are 1/2" BSPP Female

These fittings are designed to be lightweight, with a high flow capacity, small external dimensions and are also suitable for vacuum.  The design ensures a fast, easy, one hand operation and extremely efficient. The E-Safe design vents the down stream pressure before disconnecting reducing noise and the risk of hose-whip

Specifications

• Nominal flow diameter is 7.6mm (5/16")
• Outlets are adjustable through 180°
• Max working pressure 16 bar (232 psi)
• Temperature range -20°C to +100°C (-4°F to +212°F)
• Interchange with Rectus 25KA, 26, 1600, 1625, JWL 520, JWL 530
