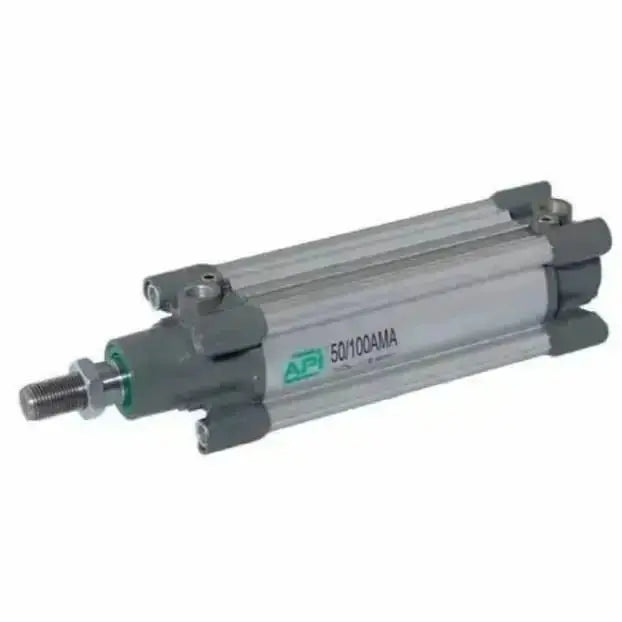

API ISO15552 Cylinders 50 Bore

Description

These 50mm bore double acting, cushioned, magnetic pneumatic cylinders conform to ISO 15552, formerly ISO 6431. End caps manufactured from die cast aluminium, painted, profile barrel manufactured from anodised aluminium and allows for 3 reed switch mounting options. AISI 304 stainless steel piston rod. Polyurethane piston rod seal ensures, low friction and long service life.

Operating pressure of 1 – 10 bar with temperature rating of -20°C to 80°C. ATEX upon request.

We can supply these on a quick next day turn around for orders before 12pm.

If you cannot see the stroke length you require, please contact us
