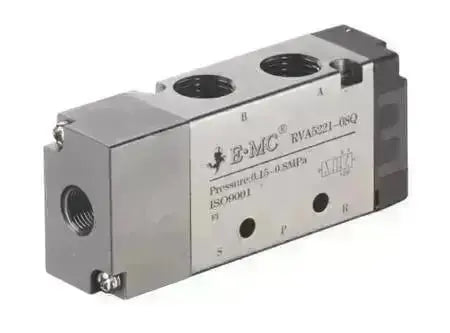

5/2 Pilot Spring Valve - EMC RV Series
Regular price
£46.07 GBP
Delivery Time
General Delivery Time: 2 working days
Delivery times are a guide and are subject to stock availability
Materials:
Body and slider: aluminium, seals: NBR, pilot: polyamide
Temperature range:
-5°C to +60°C
Operating pressure:
1.5 - 8 bar
Media:
oiled and unoiled filtered compressed air
Service life:
min. 12 million switching cycles

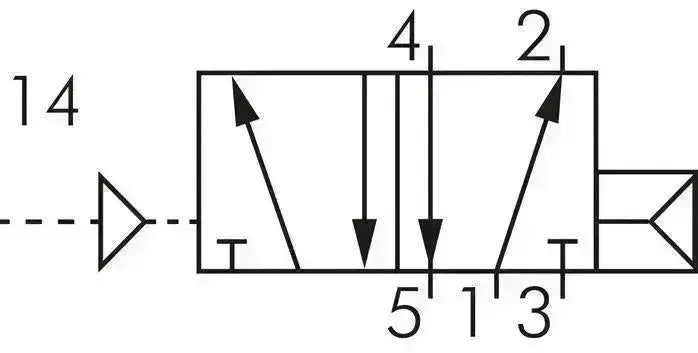

These valves are 5/2 Way pilot operated on way and spring return the other. 5/2 Way means this valve has 5 ports (1 Inlet, 2 Outlets and 2 Exhausts) and 2 positions. The 5/2 Pilot Spring Valve - EMC RV Series boasts 5 ports, including 1 inlet, 2 outlets, and 2 exhausts, making it a highly versatile and efficient choice for your industrial or commercial needs. With pilot operated functionality, this valve allows for smooth and precise motion, ensuring optimal performance and low maintenance costs.
The Ports Sizes are as follows:
1/8" Inlet/Outlet, 1/8" Pilot and Exhaust
1/4" Inlet/Outlet, 1/8" Pilot and Exhaust
3/8" Inlet/Outlet, 1/4" Pilot and Exhaust
1/2" Inlet/Outlet, 1/2" Pilot and Exhaust
These are an equivalent to:
