JG Equal Elbow for Plumbing and Heating

Description

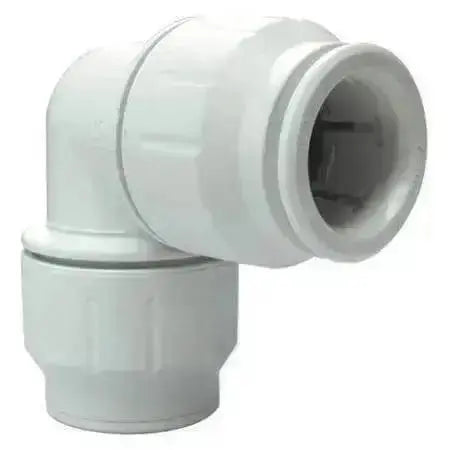

The John Guest (JG) pushin equal elbow is for use for plumbing and heating applications.  These fittings are designed for use with copper or plastic tubes.  The fittings are WRAS approved for use with drinking water applications.

Applications

These fittings can be used for the following installations:

• Mains fed and indirect cold water systems
• Vented and unvented hot water systems
• Vented and sealed central heating systems

IMPORTANT these fittings are not to be used with gas, fuel, oil or compressed air applications.

Specifications

Working Temperature and Pressures

Cold Water maximum temperature 20°C and maximum working pressure 12 bar

Central Heating maximum temperature 105°C (114°C for short term) and maximum working pressure 3 bar.

Hot Water maximum temperature 95°C and maximum working pressure 6 bar
